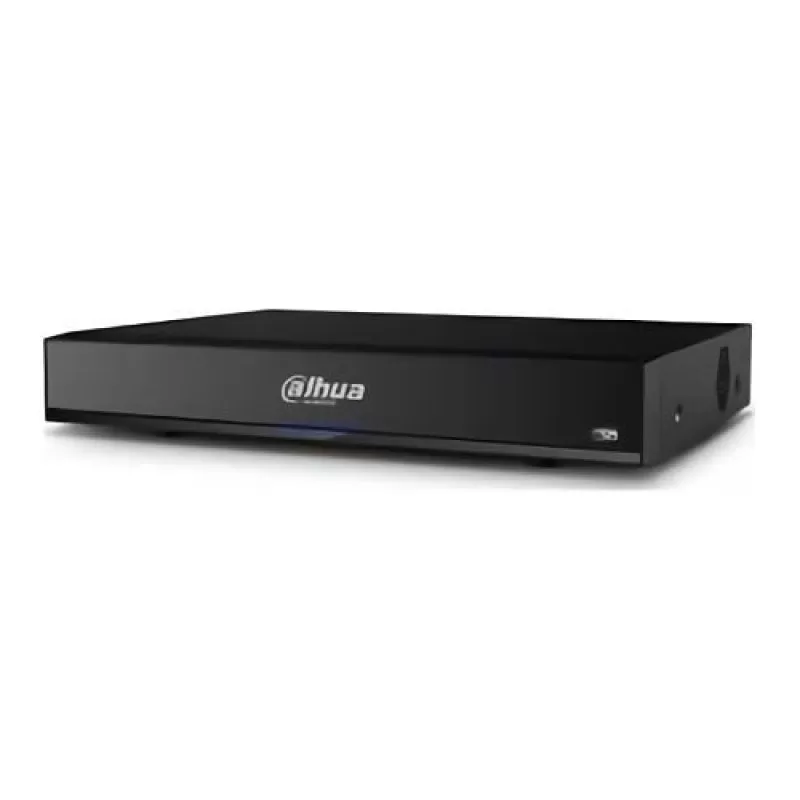

DVR Dahua XVR7108HE-4KL-X, XVR 8 canale 4K/4MP non-realtime, 2MP realtime H.265+, Penta-brid HDCVI/AHD/TVI/CVBS/IP, 8+8 IP 8MP (Max 64Mbps), 1xSATA 10TB, Audio 8 in/1 out, Alarm 8 in/3 out, 1 RJ45(1000M), IoT si POS 2.0, Smart Search si IVS

DVR Dahua XVR7108HE-4KL-X, XVR 8 canale 4K/4MP non-realtime, 2MP realtime H.265+, Penta-brid HDCVI/AHD/TVI/CVBS/IP, 8+8 IP 8MP (Max 64Mbps), 1xSATA 10TB, Audio 8 in/1 out, Alarm 8 in/3 out, 1 RJ45(1000M), IoT si POS 2.0, Smart Search si IVS

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR7108HE-4KL-X
  • Rezolutie: 1280×720VGA: 1920×1080, 5MP, 1280×720, 4MP, OSD: Camera title, 3MP, Time, 4M-N, Video loss, 1080P, Camera lock, 720P, Motion detection, 960H, HDMI:3840×2160, Recording, D1, 2560×1440, CIF, 1920×1080, 4K, 1280×1024, 6MP
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid XVR7108HE-4KL-X, 8 canale 4K/4MP non-realtime, 2MP realtime H.265+/H.265/H.264+/H.264, HDCVI/AHD/TVI/CVBS/IP, 8+8 IP pana la 8MP fiecare (max 64Mbps Incoming Bandwidth), 1xSATA max. 10TB, 1 HDMI/1 VGA, Audio 8 in/1 out, Alarm 8 in/3 out, 1 RJ45(1000M), 2 USB, IoT si POS 2.0, Smart Search si IVS, Mini 1U.
Activare eveniment Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips, Recording, PTZ, Tour
Alimentare DC12V/2A
Audio bidirectional Reuse audio in/Out, RCA
Bit Rate 32Kbps ~ 6144Kbps Per Channel
Canale IP 8
Capacitate maxima HDD 10 TB
Compresie audio AAC(only for the 1st channel), G.711A, G.711U, PCM
Compresie video H.265+/H.265/H.264+/H.264
Consum <10W
CVBS Da, VGA: 1
Detectie video Motion Detection
Dimensiuni 325x255x55 mm
Dispozitive suportate iPhone, iPad, Android
EN 55024UL UL 60950-1, CVI: Da
Flux principal 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-/1080P/720P/960H/D1/CIF(1~25/30fps), 4K(1~7fps)
Flux secundar 960H(1~15fps);D1/CIF(1~25/30fps)
Format Mini 1U
Greutate 1.3 kg
HDMI 1, USB: 2 USB Ports (1 USB 2.0, 1 USB 3.0)
Iesiri alarma 3
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interval inregistrare 1 ~ 60 min (default: 60 min)
Intrari alarma 8
Intrari audio 8
Intrari BNC 8
Latime de banda Max 64Mbps
MD (Video detection Motion Detection, Video Loss, Tampering), Alarm, Stop
MD Zones 396 (22 × 18), Video Loss;Tampering and Diagnosis
Modalitati Backup USB Device/Network
Modalitati cautare Time /Date, Alarm, MD and Exact Search (accurate to second)
Moduri inregistrare Manual, Schedule (Regular, Continuous)
Numar total canale 8 + 8
ONVIF ONVIF 16.12, CGI Conformant, AHD: Da
Playback simultan 1/4/9
Post-record 10 ~ 300 sec
Pre-record 1 ~ 30 sec
Procesor Embedded
Protocol retea 3G/4G, Alarm Server, UPNP, P2P;IP Search (Supports IP camera, RTSP, DVR, UDP, NVS, SMTP, etc.), NTP, HTTP, DHCP, HTTPS, DNS, TCP/IP, IP Filter, IPv4/IPv6, PPPoE;DDNS, Wi-Fi, FTP
Rezolutie 1280×720VGA: 1920×1080, 5MP, 1280×720, 4MP, OSD: Camera title, 3MP, Time, 4M-N, Video loss, 1080P, Camera lock, 720P, Motion detection, 960H, HDMI:3840×2160, Recording, D1, 2560×1440, CIF, 1920×1080, 4K, 1280×1024, 6MP
Rezolutie maxima AHD 3MP, 1080P@25/30, 720P@25/30fps, 5MP, 4MP
Rezolutie maxima CVBS PAL/NTSC
Rezolutie maxima CVI 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
Rezolutie maxima IP 8 MP
Rezolutie maxima TVI 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
RJ45 1
RS485 1 Port, for PTZ Control
SATA 1
Sistem operare Embedded LINUX
Stocare HDD 1x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10 ~ +55 C, 10% ~ 90% RH
Utilizatori 128 max.
