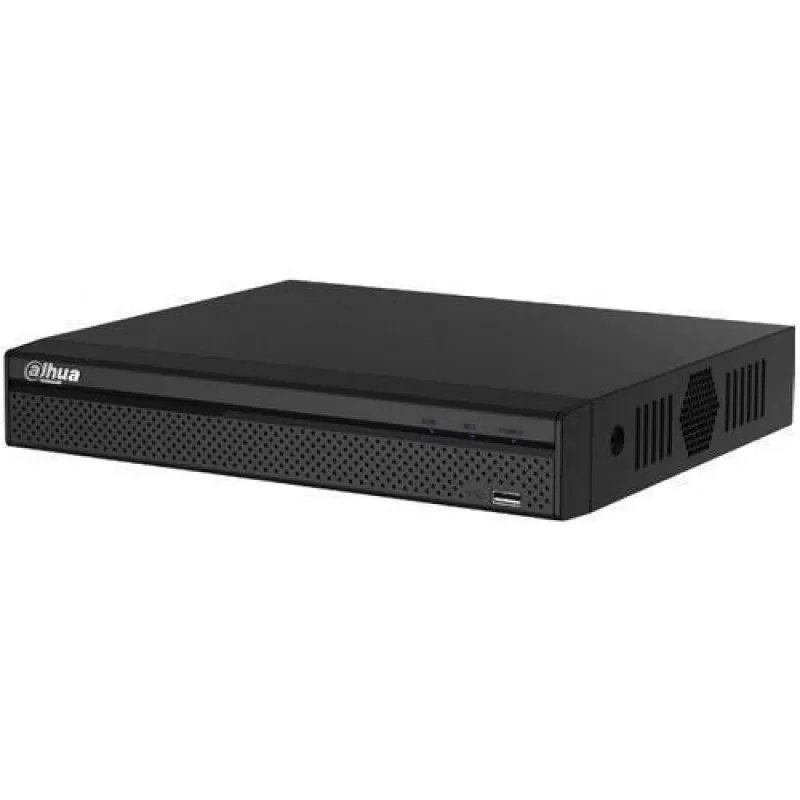

DVR Dahua XVR5104HS-X1, 4 canale + 2 IP, 5M-N/4M-N/1080P, H.265+, Pentabrid HDCVI/AHD/TVI/CVBS/IP

DVR Dahua XVR5104HS-X1, 4 canale + 2 IP, 5M-N/4M-N/1080P, H.265+, Pentabrid HDCVI/AHD/TVI/CVBS/IP

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR5104HS-X1
  • Rezolutie: 1080N, 1920x1080, 720P, 1280x1024, 960H, 1280x720, D1, OSD: Camera title, CIF, Time, Video loss, Camera lock, Motion detection, 5M-N, Recording, 4M-N, 1080P
  • Tehnologie: TVI: Da, IP: Da, HDCVI/AHD/TVI/CVBS/IP
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid, HDCVI/AHD/TVI/CVBS/IP, H.265, 4 canale , 4MP/1080P/1080N/720P, audio 1/1, SATA X 1, 1U
Activare eveniment PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips, Recording
AHD 5MP, 4MP, 1080P @25fps, 720P @250fps
Alimentare DC 12V / 1.5A
Audio bidirectional Reutilizare audio in/out, RCA
Bit Rate 32Kbps ~ 6144Kbps per canal
Brut 1.6kg kg
Canale IP 2
Capacitate maxima HDD 6 TB
Compresie audio AAC (doar primul canal), G.711A, G.711U, PCM
Compresie video H.265+/H.265/H.264+/H.264
Consum Fara HDD: <10W
CVBS Da, VGA: 1
Detectie video Motion Detection
Dimensiuni 260 x 236 x 48 mm
Dispozitive suportate iPhone, iPad, Android
Flux principal Primul canal: 5M-N @1~10fps, celelalte canale: 4M-N/1080P @1~15fps, 1080N/720P/960H/D1/CIF @1~25fps
Flux secundar D1/CIF @1~15fps
Format Compact 1U
Greutate Net fara HDD: 0.9 kg
HDMI 1, USB: 2
Iesiri audio 1
Interfata 10/100 Mbps
Interval inregistrare 1 ~ 60 min (default: 60 min)
Intrari audio 1
Intrari BNC 4
MD (Video detection Motion Detection, Video Loss, Tampering), Alarm, Stop
MD Zones 396 (22x18), Video Loss, Tampering and Diagnosis
Modalitati Backup USB/Retea
Modalitati cautare Time /Date, Alarm, MD and Exact Search (accurate to second)
Moduri inregistrare Continuous), Manual, Schedule (General
Numar total canale 4 + 2
ONVIF Da, AHD: Da
Playback simultan 1/4
Post-record 10 ~ 300 sec
Pre-record 1 ~ 30 sec
Procesor Integrat
Protocol retea HTTP, NTP, NVS, HTTPS, DHCP, etc.), TCP/IP, DNS, IPv4/IPv6, IP Filter, Wi-Fi, PPPOE, 3G/4G, DDNS, SNMP, FTP, UPNP, Alarm Server, RTSP, P2P, UDP, IP Search (Supports Dahua IP camera, SMTP, DVR
Rezolutie 1080N, 1920x1080, 720P, 1280x1024, 960H, 1280x720, D1, OSD: Camera title, CIF, Time, Video loss, Camera lock, Motion detection, 5M-N, Recording, 4M-N, 1080P
Rezolutie maxima AHD 5M-N
Rezolutie maxima CVI 5M-N
Rezolutie maxima IP 6MP
Rezolutie maxima TVI 5M-N
RJ45 1
RS485 1
SATA 1
Sistem operare Integrat Linux
Stocare HDD 1x SATA
Tehnologie TVI: Da, IP: Da, HDCVI/AHD/TVI/CVBS/IP
Temperatura functionare -10 ~ +45 ℃, CVI: Da
TVI 5MP, 4MP, 1080P @25fps, 720P @25fps
Utilizatori Max. 128
Vizualizare camere 4MP, 1080P @25fps, 720P @25/50fps, HDCVI: 5MP
