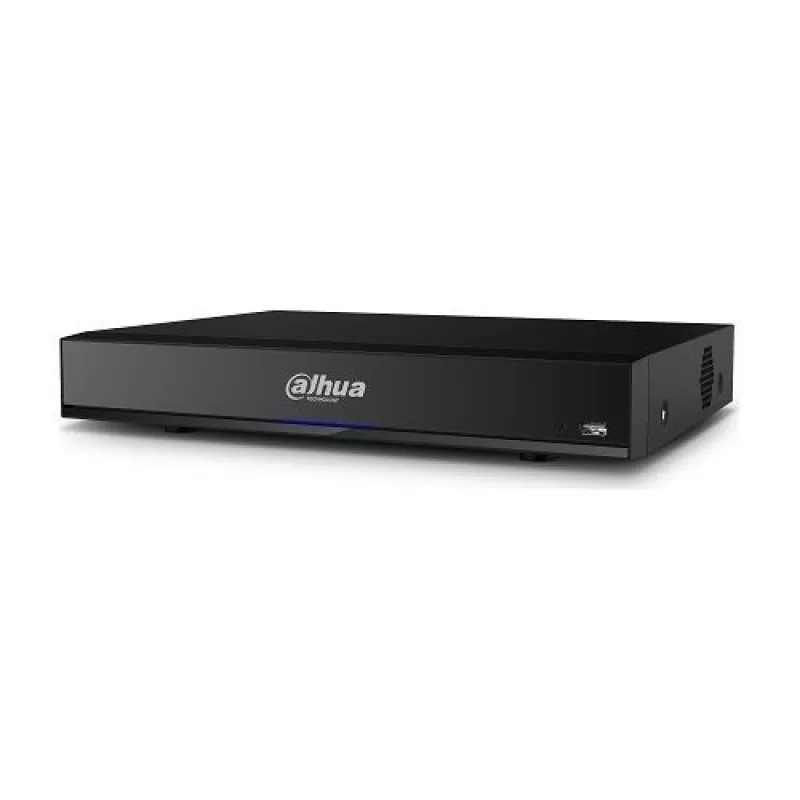

DVR Dahua XVR7104HE-4KL-X, XVR 4 canale 4K/4MP non-realtime, 2MP realtime H.265+, Penta-brid HDCVI/AHD/TVI/CVBS/IP, 4+4 IP 8MP (Max 32Mbps), 1xSATA 10TB, Audio 4 in/1 out, Alarm 8 in/3 out, 1 RJ45(100M), IoT si POS 2.0, Smart Search si IVS

DVR Dahua XVR7104HE-4KL-X, XVR 4 canale 4K/4MP non-realtime, 2MP realtime H.265+, Penta-brid HDCVI/AHD/TVI/CVBS/IP, 4+4 IP 8MP (Max 32Mbps), 1xSATA 10TB, Audio 4 in/1 out, Alarm 8 in/3 out, 1 RJ45(100M), IoT si POS 2.0, Smart Search si IVS

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR7104HE-4KL-X
  • Rezolutie: 5MP, VGA: 1920×1080, 4MP, 1280×1024, 3MP, 1280×720, 4M-N, OSD: Titlu camera, 1080P, Timp, 720P, Lipsa semnal, 960H, Camera blocata, D1, HDMI:2560x1440, Detectie miscare, CIF, 1920x1080, Inregistrare, 4K, 1280x1024, 6MP, 1280x720
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid XVR7104HE-4KL-X, 4 canale 4K/4MP non-realtime, 2MP realtime H.265+/H.265/H.264+/H.264, HDCVI/AHD/TVI/CVBS/IP, 4+4 IP pana la 8MP fiecare (max 32Mbps Incoming Bandwidth), 1xSATA max. 10TB, 1 HDMI/1 VGA, Audio 4 in/1 out, Alarm 8 in/3 out, 1 RJ45(100M), 2 USB, IoT si POS 2.0, Smart Search si IVS, Mini 1U.
Activare eveniment PTZ, Tur, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips, Inregistrare
Alimentare DC12V/2A
Audio bidirectional Reutilizare audio in/out, RCA
Bit Rate 32Kbps ~ 6144Kbps pe canal
Canale IP 4
Capacitate maxima HDD 10 TB
Compresie audio AAC(only for the 1st channel), G.711A, G.711U, PCM
Compresie video H.265+/H.265/H.264+/H.264
Consum <10W
CVBS Da, VGA: 1
Detectie video Detectie miscare
Dimensiuni 325x255x55 mm
Dispozitive suportate iPhone, iPad, Android
Flux principal 6MP(1~10fps), 5MP(1~12fps);, 4MP/3MP(1~15fps);, 4M-/1080P/720P/960H/D1/CIF(1~25/30fps), 4K(1~7fps)
Flux secundar 960H(1~15fps);, D1/CIF(1~25/30fps)
Format Mini 1U
Greutate 1.2 kg
HDMI 1, USB: 2 USB Ports (2 USB 2.0 )
Iesiri alarma 3
Iesiri audio 1
Interfata 1 RJ-45 Port (100M)
Interval inregistrare 1~60min. (implicit: 60min.)
Intrari alarma 8
Intrari audio 4
Intrari BNC 4
Latime de banda Max 32Mbps
Modalitati Backup USB Device/Network
Modalitati cautare Timp/Data, Detectie miscare si Cautare exacta (precizie 1 sec), Cautare inteligenta
Moduri inregistrare Detectie Miscare, Alarma, Stop, Manual, Orar (Normal, continuu)
Numar total canale 4 + 4
ONVIF ONVIF 16.12, CGI Conformant, AHD: Da
Playback simultan 1/4
Post-inregistrare 10~300sec.
Pre-inregistrare 1~30sec.
Procesor Integrat
Protocol retea Alarm Server, UPNP, P2P;IP Search (Supports IP camera, RTSP, DVR, UDP, NVS, SMTP, etc.), NTP, HTTP, DHCP, HTTPS, DNS, TCP/IP, IP Filter, IPv4/IPv6, PPPoE;DDNS, Wi-Fi, FTP, 3G/4G
Rezolutie 5MP, VGA: 1920×1080, 4MP, 1280×1024, 3MP, 1280×720, 4M-N, OSD: Titlu camera, 1080P, Timp, 720P, Lipsa semnal, 960H, Camera blocata, D1, HDMI:2560x1440, Detectie miscare, CIF, 1920x1080, Inregistrare, 4K, 1280x1024, 6MP, 1280x720
Rezolutie maxima AHD 1080P@25/30, 720P@25/30fps, 5MP, 4MP, 3MP
Rezolutie maxima CVBS PAL/NTSC
Rezolutie maxima CVI 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps, 4K, 6MP
Rezolutie maxima IP 8 MP
Rezolutie maxima TVI 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
RS485 1 Port, for PTZ Control
Sistem operare Linux integrat
Stocare HDD 1x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10oC ~ +55oC, 10% ~ 90% RH, CVI: Da
Utilizatori 128
Zone detectie Tampering, Diagnoza, 396(22x18), Lipsa semnal
