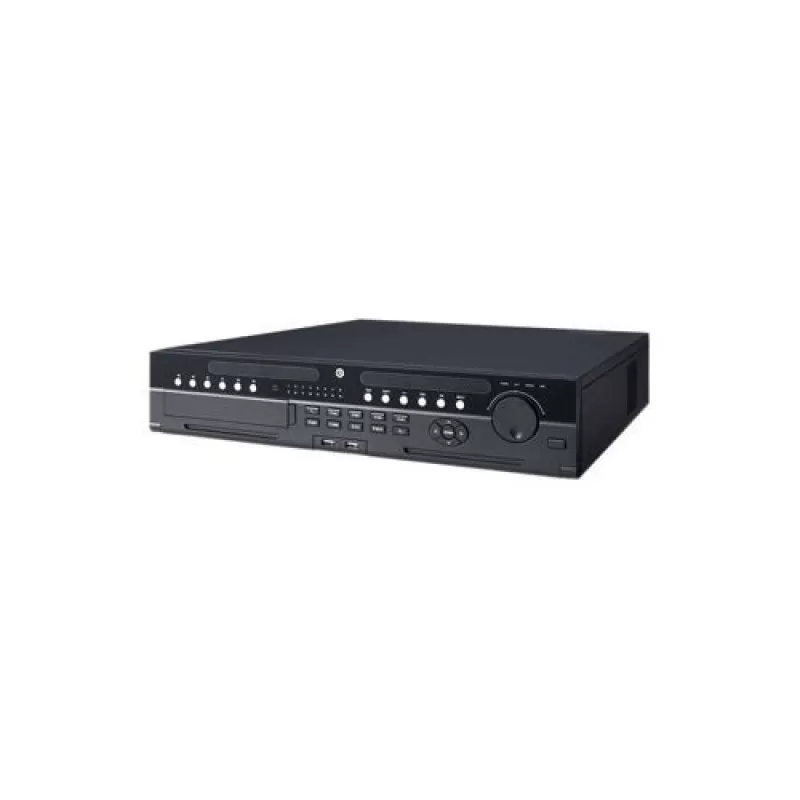

DVR Dahua HCVR7816S-URH, Tribrid HDCVI/Analog/IP, 16 ch. 1080P@25/30fps, H.264 dual-stream, Audio 16/1, 8xSATA, 2U

DVR Dahua HCVR7816S-URH, Tribrid HDCVI/Analog/IP, 16 ch. 1080P@25/30fps, H.264 dual-stream, Audio 16/1, 8xSATA, 2U

(0 review-uri)
  • Producator: Dahua
  • Cod: HCVR7816S-URH
  • Rezolutie: 1024x768, 1920x1080, 1280x1024, 1280x720
  • Tehnologie: HDCVI/CVBS/IP, IP: Da, VGA: 1
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Tribrid HDCVI/Analog/IP HCVR7816S-URH, 16 ch. 1080P@25/30fps, H.264 dual-stream encoding, 8 channel synchronous realtime playback, GRID interface-smart search, 2HDMI/VGA/TV simultan video output, Audio 16/1, Alarm 16/6, Support 8 SATA up to 32TB, 1 eSATA up to 16TB, 4 USB2.0, 3D intelligent positioning with Dahua PTZ dome camera, ONVIF Version 2.4 conformance, Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek , and etc., Support RAID0,RAID1,RAID5,RAID10, Support hot-swap HDD, Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS), 2U
Activare eveniment Alarm out, Video Push, Email, FTP, Spot, Snapshot, Buzzer-Screen tips, Recording, PTZ, Tour
Alimentare AC 100~240 V, 50/60 Hz
Audio bidirectional BNC, 1 Channel Input, 1 Channel Output
Bit Rate 48~6144Kb/s
Canale IP Support 16ch 1080P/720P IP Camera
Capacitate maxima HDD 4 TB
Compresie audio G.711
Compresie video H.264
Consum 40W(fara HDD)
Detectie video Motion Detection
Dimensiuni 440x460x89 mm
Dispozitive suportate iPhone, iPad, Android, Windows Phone
Flux principal 1080P/720P/960H/D1/HD1/2CIF/CIF/QCIF (1~25/30fps)
Flux secundar 960H(1~6fps) /D1/CIF/QCIF(1~25/30fps)
Format 2U
Greutate 6.5 kg
HDMI 2, USB: 4 ports (2 Rear), USB2.0
Iesiri 1 BNC
Iesiri alarma 6
Iesiri audio 1
Interfata 2 RJ-45 port (10/100M/1000M)
Interval inregistrare 1 ~ 60 min (default: 60 min)
Intrari alarma 16
Intrari audio 16
Intrari BNC 16
MD Zones 396(22??18), Video Loss-Camera Blank
Modalitati Backup USB Device/eSATA Device/Internal SATA burner/Network
Modalitati cautare Time/Date, Alarm, MD-Exact search (accurate to second), Smart search
Moduri inregistrare Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Numar total canale 16
ONVIF Version 2.4 conformance, AHD: Da
Playback simultan 1/4/9/16
Post-record 10 ~ 300 sec
Pre-record 1 ~ 30 sec
Procesor Dual-core embedded
Protocol retea UDP, P2P, SMTP, NTP, DHCP;, DNS, PPPOE, HTTP, DDNS, IPv4/IPv6, FTP, TCP/IP, IP Filter, UPNP, Alarm Server, RTSP, SNMP
Rezolutie 1024x768, 1920x1080, 1280x1024, 1280x720
Rezolutie maxima AHD NTSC/PAL
Rezolutie maxima CVI 1080P/720P
Rezolutie maxima IP 1080P/720P
RJ45 2
RS232 1 port, For PC communication-Keyboard
RS485 1 Port, for PTZ Control
SATA 8, eSATA: 1
Sistem operare Embedded LINUX
Stocare HDD 8x SATA
Tehnologie HDCVI/CVBS/IP, IP: Da, VGA: 1
Temperatura functionare -10??C ~+55??C / 10%~90%RH / 86~106kpa, CVI: Da
Utilizatori 128 max.
Zone private 4 rectangular zones (each camera), OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
