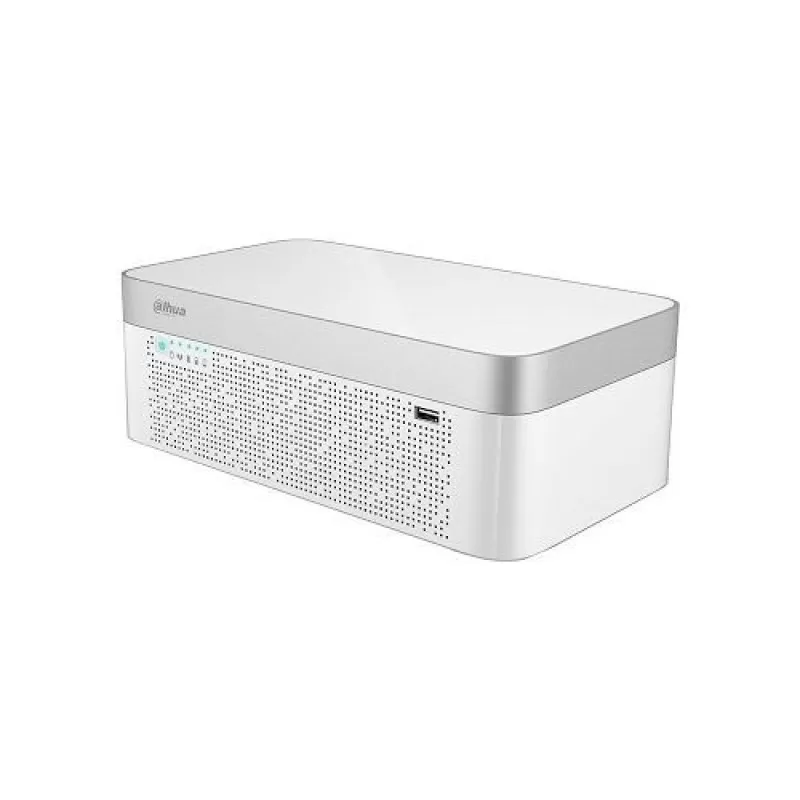

DVR Dahua XVR7104E-4KL-X, 4 canale, Penta-brid 4K, Elegant 1U, H.265+/H.265, 4+4 IPC, IoT & POS functionalities, Face detection, Smart Search

DVR Dahua XVR7104E-4KL-X, 4 canale, Penta-brid 4K, Elegant 1U, H.265+/H.265, 4+4 IPC, IoT & POS functionalities, Face detection, Smart Search

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR7104E-4KL-X
  • Rezolutie: Detectie miscare, 960H, HDMI:3840×2160, Inregistrare, D1, 2560×1440, CIF, 1920×1080, 4K, 1280×1024, 6MP, 1280×720, 5MP, VGA: 1920×1080, 4MP, OSD: Titlu camera, 3MP, Timp, 4M-N, Lipsa semnal, 1080P, Camera blocata, 720P
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
Dahua XVR7104E-4KL-X, 4 canale, Penta-brid 4K, Elegant 1U, H.265+/H.265 dual-stream video compression, Suport HDCVI/AHD/TVI/CVBS/IP, HDCVI, Suport 4+4 canale IPC acces, fiecare canal up to 8MP input, IoT-POS, IVS, Face detection, Smart Search
Alimentare DC12V/2A
Bit Rate 32Kbps ~ 8192Kbps Per Channel
Canale IP 4 + 4 canale, fiecare canal pana la 8MP
Capacitate maxima HDD up to 10 TB
CE-EMC EN 50130, EN 55024, UL: UL 60950-1, CVI: Da, EN 61000-3-2, EN 61000-3-3, EN 55032
Compresie audio G.711A, G.711U, PCM, AAC(only for the 1st channel)
Compresie video H.265+/H.265/H.264+/H.264
Consum <10W
CVBS Da, VGA: Da
Detectie video Detectie miscare
Dimensiuni 265x150x87.5 mm
Flux principal 4CH: 4K(1~15fps), 6MP/5MP(1~20fps);, 4MP/3MP/1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Flux secundar 960H(1~15fps), D1/CIF(1~25/30fps)
Format Elegant 1U
Greutate 1.2 kg
HDMI Da, USB: 3 USB Ports (2 USB 2.0, 1 USB 3.0)
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interoperabilitate ONVIF 16.12, Conformant CGI
Interval inregistrare 1 ~ 60 min (default: 60 min)
Intrari audio 1
Intrari BNC 4
MD (Video detection Tampering), Alarm, Stop, Motion Detection, Video Loss
MD Zones 396 (22 × 18), pierdere video;, Tampering si Diagnoza
Modalitati Backup USB Device/Network
Modalitati cautare Time /Date, Alarm, MD and Exact Search (accurate to second)
Moduri inregistrare Manual, Schedule (General, Continuous)
Numar total canale 4 + 4
ONVIF ONVIF 16.12, CGI Conformant, AHD: Da
Operatii retea Snapshot;, Buzzer si Sfaturi de ecran, Inregistrare, PTZ, Tur, Video Push, Email, FTP
Playback simultan 4CH: 1/4
Post-record 10 ~ 300 sec
Pre-record 1 ~ 30 sec;
Procesor Embedded
Protocol retea UPNP, P2P;IP Search (Supports Dahua IP camera;, RTSP;, DVR, UDP, NVS, SMTP, etc.), NTP, HTTP, DHCP, HTTPS, DNS, TCP/IP, IP Filter, IPv4/IPv6, PPPoE;DDNS, Wi-Fi, FTP;, 3G/4G, Alarm Server
Rezolutie Detectie miscare, 960H, HDMI:3840×2160, Inregistrare, D1, 2560×1440, CIF, 1920×1080, 4K, 1280×1024, 6MP, 1280×720, 5MP, VGA: 1920×1080, 4MP, OSD: Titlu camera, 3MP, Timp, 4M-N, Lipsa semnal, 1080P, Camera blocata, 720P
RJ45 1
RS485 1 Port, for PTZ Control
Sistem operare Embedded LINUX
Stocare HDD 1x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10 ~ +45 grade
Utilizatori 128
When IP extension mode enabled 4CH: 1/4/6
