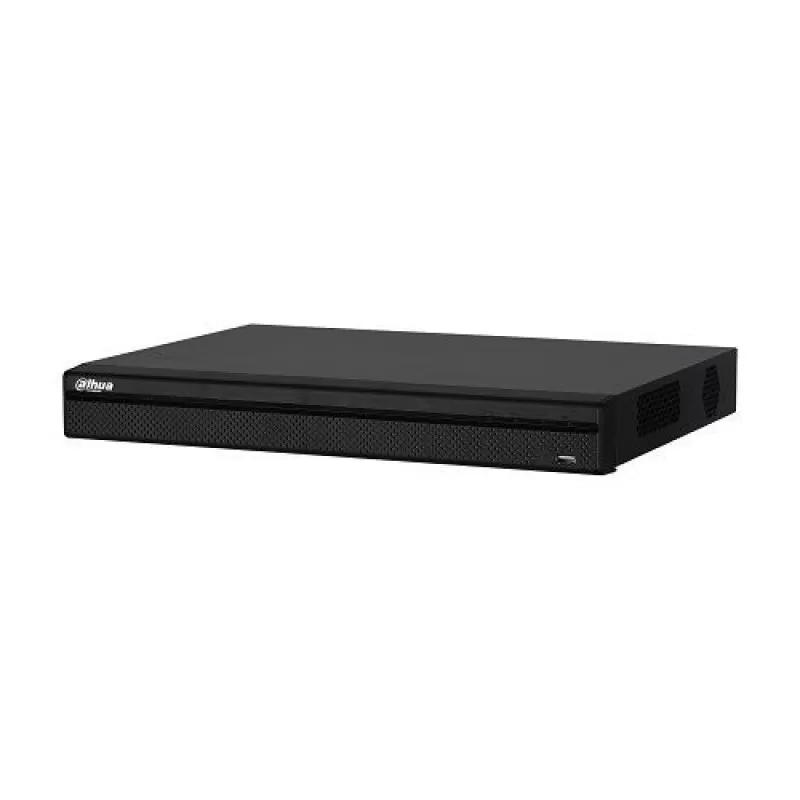

DVR Dahua XVR5216AN-4KL-X-16P 16 canale, 4K, Pentabrid HDCVI/AHD/TVI/CVBS/IP, 2xHDD, 16xPoC

DVR Dahua XVR5216AN-4KL-X-16P 16 canale, 4K, Pentabrid HDCVI/AHD/TVI/CVBS/IP, 2xHDD, 16xPoC

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR5216AN-4KL-X-16P
  • Power over Coaxial (PoC): Da, CVI: Da
  • Rezolutie: 4K, 1920x1080, 6MP, 1280x1024, 5MP, 1280x720, 4MP, VGA: 1920x1080, 3MP, OSD: Titlu camera, 4M-N, Timp, 1080P, Lipsa semnal, 720P, Camera blocata, 960H, Detectie miscare, D1, HDMI:3840x2160, Inregistrare, CIF, 2560x1440
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua Pentabrid XVR5216AN-4KL-X-16P, 16 canale 4K, 1080P realtime, H.265+/H.265 dual-stream, Pentabrid HDCVI/AHD/TVI/CVBS/IP, Max 24 canale IP de pana la 8MP fiecare, Max 96Mbps, ONVIF, 2xSATA, 1 HDMI/1 VGA, 1 TV, Audio in/out 1/1, RCA, 1 RJ45(1000M), 2 USB (1 USB 2.0, 1 USB 3.0), Consum total 96W - 16 intrari pentru camere AF PoC sau 8 intrari pentru camere cu AT PoC.
Activare eveniment Inregistrare, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer si Screen tips
Alimentare 54Vdc
Audio bidirectional Reutilizare audio in/out, RCA
Bit Rate 32Kbps ~ 8192Kbps pe canal
Canale IP 16 + 8
Capacitate maxima HDD 10 TB
Compresie audio G.711A, G.711U, PCM
Compresie video H.265+/H.265/H.264+/H.264
CVBS Da, VGA: 1
Detectie miscare Zone detectie: 396(22x18), Lipsa semnal, Tampering si Diagnostic
Dimensiuni 375x287x53 mm
Dispozitive suportate Android, iPhone, iPad
Flux principal 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)Sub steram:960H(1~15fps);
Flux secundar 960H(1~15fps), D1/CIF(1~25/30fps)
Format 1U
Greutate 1.7 (fara HDD) kg
HDMI 1, USB: 2 (1 USB 2.0, 1 USB 3.0)
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interval inregistrare 1~60min. (implicit: 60min.)
Intrari audio 1
Intrari BNC 16
Latime de banda Max 96Mbps
MD (Detectie video Detectie miscare, Lipsa semnal Video, Tampering) Alarma, Stop
Modalitati Backup USB Device/Network
Modalitati cautare Timp/Data, Detectie miscare si Cautare exacta (precizie 1 sec)
Moduri inregistrare Manual, Orar (General, continuu)
Numar total canale 16 + 8
ONVIF ONVIF 16.12, CGI Conformant, AHD: Da
Playback simultan 1/4/9/16
Post-inregistrare 10~300sec.
Power over Coaxial (PoC) Da, CVI: Da
Pre-inregistrare 1~30sec.
Procesor Integrat
Protocol retea PPPoE;DDNS, 3G/4G, FTP, SNMP, Alarm Server, UPNP, P2P;IP Search (Supports Dahua IP camera, RTSP, DVR, UDP, NVS, SMTP, etc.), HTTP, NTP, HTTPS, DHCP, TCP/IP, DNS, IPv4/IPv6, IP Filter, Wi-Fi
Rezolutie 4K, 1920x1080, 6MP, 1280x1024, 5MP, 1280x720, 4MP, VGA: 1920x1080, 3MP, OSD: Titlu camera, 4M-N, Timp, 1080P, Lipsa semnal, 720P, Camera blocata, 960H, Detectie miscare, D1, HDMI:3840x2160, Inregistrare, CIF, 2560x1440
Rezolutie maxima AHD 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
Rezolutie maxima CVBS PAL/NTSC
Rezolutie maxima CVI 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
Rezolutie maxima IP 16+8 Channel, each channel up to 8MP
Rezolutie maxima TVI 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
RS485 1, pentru PTZ
Sistem operare Linux integrat
Stocare HDD 2x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10oC~+55oC / 10~90%RH
Utilizatori 128
