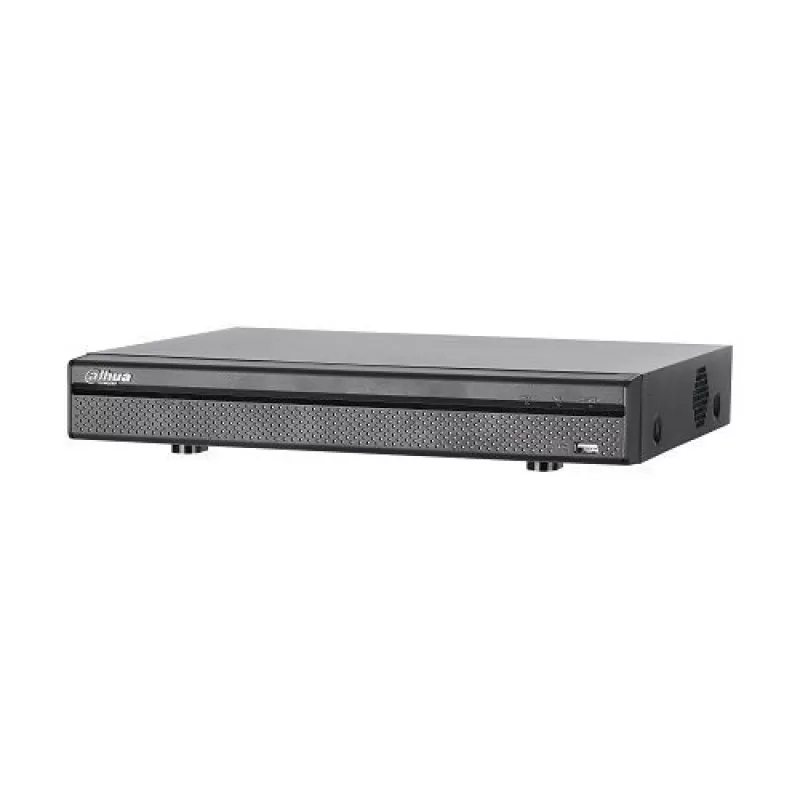

DVR Dahua XVR5108H-4KL-8P, 8 Canale Penta-brid 4K Mini 1U, 1 HDMI/1 VGA, 8ch Video in, Audio in/out 1/1, 1 RJ45(1000M), 2 USB, Penta-brid(CVBS/HDCVI/AHD/TVI/IP self-adaptive, 8+4 IP camera input,up to 8Mp), PoC

DVR Dahua XVR5108H-4KL-8P, 8 Canale Penta-brid 4K Mini 1U, 1 HDMI/1 VGA, 8ch Video in, Audio in/out 1/1, 1 RJ45(1000M), 2 USB, Penta-brid(CVBS/HDCVI/AHD/TVI/IP self-adaptive, 8+4 IP camera input,up to 8Mp), PoC

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR5108H-4KL-8P
  • Power over Coaxial (PoC): Da, CVI: Da
  • Rezolutie: Camera lock, QCIF, HDMI:3840x2160, 4K, Motion detection, 2560x1440, 6MP, Recording, 1920x1080, 5MP, 1280x1024, 4MP, 1280x720, 3MP, 1024x768, 1080P, VGA: 1920x1080, 720P, OSD: Camera title, 960H, Time, D1, Video loss, CIF
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid XVR5108H-4KL-8P, 8 Canale Penta-brid 4K/4MP non-realtime, 1080P realtime, Mini 1U, H.264+/H.264 dual-stream, 1 HDMI/1 VGA, 8ch Video in, Audio in/out 1/1, RCA, 1 RJ45(1000M), 2 USB, Penta-brid(CVBS/HDCVI/AHD/TVI/IP self-adaptive, 8+4 IP camera input,up to 8Mp), Max 48Mbps Incoming Bandwidth, Smart Search and Intelligent Video System, PoC series
Alimentare DC48V/1.5A
Audio bidirectional Reuse audio in/Out, RCA
Bit Rate 1Kbps ~ 8192Kbps Per Channel
Canale IP 4
Capacitate maxima HDD 6 TB
CE-EMC UL: UL 60950-1, EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Compresie video H.264+/H.264
Consum <10W (fara HDD)
CVBS Da, VGA: 1
Dimensiuni 325x255x55 mm
Dispozitive suportate iPhone, iPad, Android
Flux principal 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Flux secundar 960H(1~15fps), D1/CIF/QCIF(1~25/30fps)
Format Mini 1U
Greutate 1.35 kg
HDMI 1, USB: 2 (1 USB 2.0, 1 USB 3.0)
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interval inregistrare 1 ~ 60 min (default: 60 min)
Intrari audio 1
Intrari BNC 8
MD (Video detection Motion Detection, Video Loss, Tampering), Alarm, Stop
Modalitati Backup USB Device/Network
Modalitati cautare Time /Date, Alarm, MD and Exact Search (accurate to second)
Moduri inregistrare Manual, Schedule (Regular, Continuous)
ONVIF CGI Conformant, AHD: Da, ONVIF 2.42
Playback simultan 1/4/9
Post-record 10 ~ 300 sec
Power over Coaxial (PoC) Da, CVI: Da
Pre-record 1 ~ 30 sec
Procesor Embedded
Protocol retea SMTP, NVS, NTP, etc.), DHCP, DNS, IP Filter, HTTP, PPPoE;, TCP/IP, DDNS, IPv4/IPv6, FTP, UPNP, Alarm Server, RTSP, P2P;IP Search (Support IP camera, UDP, DVR
Rezolutie Camera lock, QCIF, HDMI:3840x2160, 4K, Motion detection, 2560x1440, 6MP, Recording, 1920x1080, 5MP, 1280x1024, 4MP, 1280x720, 3MP, 1024x768, 1080P, VGA: 1920x1080, 720P, OSD: Camera title, 960H, Time, D1, Video loss, CIF
Rezolutie maxima AHD 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
Rezolutie maxima CVI 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
Rezolutie maxima IP 8+4 Channel, each channel up to 8MP
Rezolutie maxima TVI 720P@25/30fps, 5MP, 4MP, 3MP, 1080P@25/30
RJ45 1
RS485 1 Port, for PTZ Control
SATA 1
Sistem operare Embedded LINUX
Stocare HDD 1x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10 ~ +55 grade, <90% RH
Utilizatori 128 max.
When IP extension mode enabled 1/4/8/9/16
