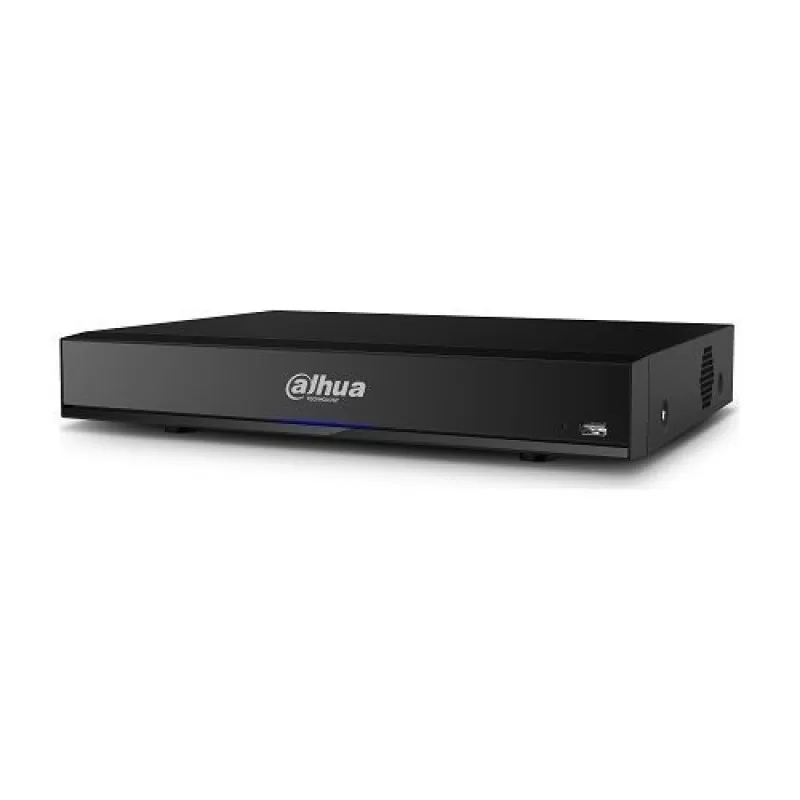

DVR Dahua XVR7116HE-4KL-X, XVR 16 canale 4K/4MP non-realtime, 2MP realtime H.265+, Penta-brid HDCVI/AHD/TVI/CVBS/IP, 16+16 IP 8MP (Max 128Mbps), 1xSATA 10TB, Audio 16 in/1 out, Alarm 16 in/3 out, 1 RJ45(1000M), IoT si POS 2.0, Smart Search si IVS

DVR Dahua XVR7116HE-4KL-X, XVR 16 canale 4K/4MP non-realtime, 2MP realtime H.265+, Penta-brid HDCVI/AHD/TVI/CVBS/IP, 16+16 IP 8MP (Max 128Mbps), 1xSATA 10TB, Audio 16 in/1 out, Alarm 16 in/3 out, 1 RJ45(1000M), IoT si POS 2.0, Smart Search si IVS

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR7116HE-4KL-X
  • Rezolutie: D1, 2560×1440, CIF, 1920×1080, 4K, 1280×1024, 6MP, 1280×720VGA: 1920×1080, 5MP, 1280×720, 4MP, OSD: Titlu camera, 3MP, Timp, 4M-N, Lipsa semnal, 1080P, Camera blocata, 720P, Detectie miscare, 960H, HDMI:3840×2160, Inregistrare
  • Tehnologie: IP: Da, HDCVI/AHD/TVI/CVBS/IP, TVI: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid XVR7116HE-4KL-X, 16 canale 4K/4MP non-realtime, 2MP realtime H.265+/H.265/H.264+/H.264, HDCVI/AHD/TVI/CVBS/IP, 16+16 IP pana la 8MP fiecare (max 128Mbps Incoming Bandwidth), 1xSATA max. 10TB, 1 HDMI/1 VGA, Audio 16 in/1 out, Alarm 16 in/3 out, 1 RJ45(1000M), 2 USB, IoT si POS 2.0, Smart Search si IVS, Mini 1U.
Activare eveniment Inregistrare, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer si Screen tips
Alimentare DC12V/3A
Audio bidirectional Reutilizare audio in/out, RCA
Bit Rate 32Kbps ~ 6144Kbps Per Channel
Canale IP 16
Capacitate maxima HDD 10 TB
Compresie audio PCM, AAC(only for the 1st channel), G.711A, G.711U
Compresie video H.265+/H.265/H.264+/H.264
Consum <20W
CVBS Da, VGA: 1
Detectie miscare Zone detectie: 396(22x18), Lipsa semnal-Camera obturata
Detectie video Detectie miscare
Dimensiuni 325x255x55 mm
Dispozitive suportate iPhone, iPad, Android
Flux principal 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-/1080P/720P/960H/D1/CIF(1~25/30fps)
Flux secundar 960H(1~15fps);D1/CIF(1~25/30fps)
Format Mini 1U
Greutate 1.4 (fara HDD) kg
HDMI 1, USB: 2 (1 USB 2.0, 1 USB 3.0)
Iesiri alarma 3
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interval inregistrare 1~60min. (implicit: 60min.)
Intrari alarma 16
Intrari audio 16
Intrari BNC 16
Latime de banda Max 64Mbps
Modalitati Backup USB Device/Network
Modalitati cautare Timp/Data, Alarma, Detectie miscare si Cautare exacta (precizie 1 sec)
Moduri inregistrare Orar (Normal, continuu), Detectie Miscare, Alarma, Stop, Manual
Numar total canale 16 + 16
ONVIF ONVIF 16.12, CGI Conformant, AHD: Da
Playback simultan 1/4/9/16
Post-inregistrare 10~300sec.
Pre-inregistrare 1~30sec.
Procesor Integrat
Protocol retea TCP/IP, IP Filter, IPv4/IPv6, PPPoE;DDNS, Wi-Fi, FTP, 3G/4G, Alarm Server, UPNP, P2P;IP Search (Supports IP camera, RTSP, DVR, UDP, NVS, SMTP, etc.), NTP, HTTP, DHCP, HTTPS, DNS
Rezolutie D1, 2560×1440, CIF, 1920×1080, 4K, 1280×1024, 6MP, 1280×720VGA: 1920×1080, 5MP, 1280×720, 4MP, OSD: Titlu camera, 3MP, Timp, 4M-N, Lipsa semnal, 1080P, Camera blocata, 720P, Detectie miscare, 960H, HDMI:3840×2160, Inregistrare
Rezolutie maxima AHD 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
Rezolutie maxima CVBS PAL/NTSC
Rezolutie maxima CVI 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps, 4K
Rezolutie maxima IP 8 MP
Rezolutie maxima TVI 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
RS485 1, pentru PTZ
Sistem operare Linux integrat
Stocare HDD 1x SATA
Tehnologie IP: Da, HDCVI/AHD/TVI/CVBS/IP, TVI: Da
Temperatura functionare -10, CVI: Da
Utilizatori 128
Zone detectie 396(22x18), Lipsa semnal, Tampering, Diagnoza
