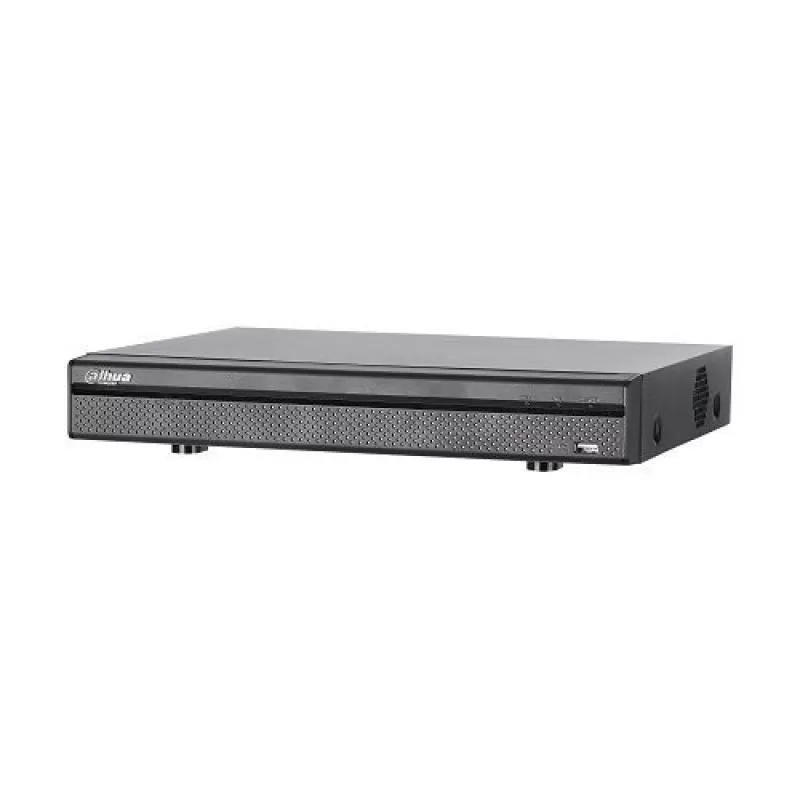

DVR Dahua XVR5116H-4KL-X, 16 canale + 8 IP, Max. 4K, H.265+, Pentabrid HDCVI/AHD/TVI/CVBS/IP

DVR Dahua XVR5116H-4KL-X, 16 canale + 8 IP, Max. 4K, H.265+, Pentabrid HDCVI/AHD/TVI/CVBS/IP

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR5116H-4KL-X
  • Rezolutie: Timp, 1080P, Lipsa semnal, 720P, Detectie miscare, 960H, Inregistrare, D1, HDMI: 3840x2160, CIF, 2560x1440, 4K, 1920x1080, 6MP, 1280x1024, 5MP, 1280x720, 4MP, VGA: 1920x1080, 3MP, OSD: Denumire camera, 4M-N
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid XVR5116H-4KL-X, 16 canale 4K/4MP non-realtime, 1080P realtime, H.265+/H.265/H.264+/H.264, 1 HDMI/1 VGA, 1 Audio in/1 Audio out,1 RJ45(1000M), 2 USB, Pentabrid(CVBS/HDCVI/AHD/TVI/IP self-adaptive, 16+8 IP camere input, pana la 8Mp), Cautare inteligenta, Functii IVS.
Activare eveniment Buzzer si Screen tips, Inregistrare, PTZ, Tur, Video Push, Email, FTP, Snapshot
Alimentare DC12V/3A
Audio bidirectional Reutilizare audio in/out, RCA
Bit Rate 32Kbps ~ 6144Kbps pe canal
Canale IP 8
Capacitate maxima HDD 10 TB
Compresie audio AAC(only for the 1st channel), G.711A, G.711U, PCM
Compresie video H.265+/H.265/H.264+/H.264
Consum <20W
CVBS Da, VGA: 1
Detectie video Detectie miscare
Dimensiuni 325x255x55 mm
Dispozitive suportate iPhone, iPad, Android
Flux principal 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps), 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps)
Flux secundar 960H(1~15fps), D1/CIF(1~25/30fps)
Format Mini 1U
Greutate 1.3 kg
HDMI 1, USB: 2 (1 USB 2.0, 1 USB 3.0)
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interval inregistrare 1~120min. (implicit: 60min.)
Intrari audio 1
Intrari BNC 16
Latime de banda 96Mbps
Modalitati Backup USB Device/Network
Modalitati cautare Timp/ Data, Alarma, Detectie miscare si Cautare exacta (precizie de 1 secunda)
Moduri inregistrare Detectie Miscare, Lipsa semnal, Tampering), Alarma, Stop, Manual, Orar (normal (continuu)
Numar total canale 16 + 8
ONVIF ONVIF 16.12, CGI Conformant, AHD: Da
Playback simultan 1/4/9/16
Post-inregistrare 10~300sec.
Pre-inregistrare 1~30sec.
Procesor Integrat
Protocol retea NTP, HTTP, DHCP, HTTPS, DNS, TCP/IP, IP Filter, IPv4/IPv6, PPPoE;DDNS, Wi-Fi, FTP, 3G/4G, Alarm Server, UPNP, P2P;IP Search (Supports IP camera, RTSP, DVR, UDP, NVS, SMTP, etc.)
Rezolutie Timp, 1080P, Lipsa semnal, 720P, Detectie miscare, 960H, Inregistrare, D1, HDMI: 3840x2160, CIF, 2560x1440, 4K, 1920x1080, 6MP, 1280x1024, 5MP, 1280x720, 4MP, VGA: 1920x1080, 3MP, OSD: Denumire camera, 4M-N
Rezolutie maxima AHD 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
Rezolutie maxima CVBS PAL/NTSC
Rezolutie maxima CVI 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps, 4K
Rezolutie maxima IP 16+8 canale, max. 8MP/canal
Rezolutie maxima TVI 720P@25/30fps, 5MP, 4MP, 3MP, 1080P@25/30
RS485 1, pentru PTZ
Sistem operare Linux integrat
Stocare HDD 1x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10oC ~ +55oC, 10% ~ 90% RH, CVI: Da
Utilizatori 128
Zone 396 (22x18), Lipsa semnal video, Tampering
