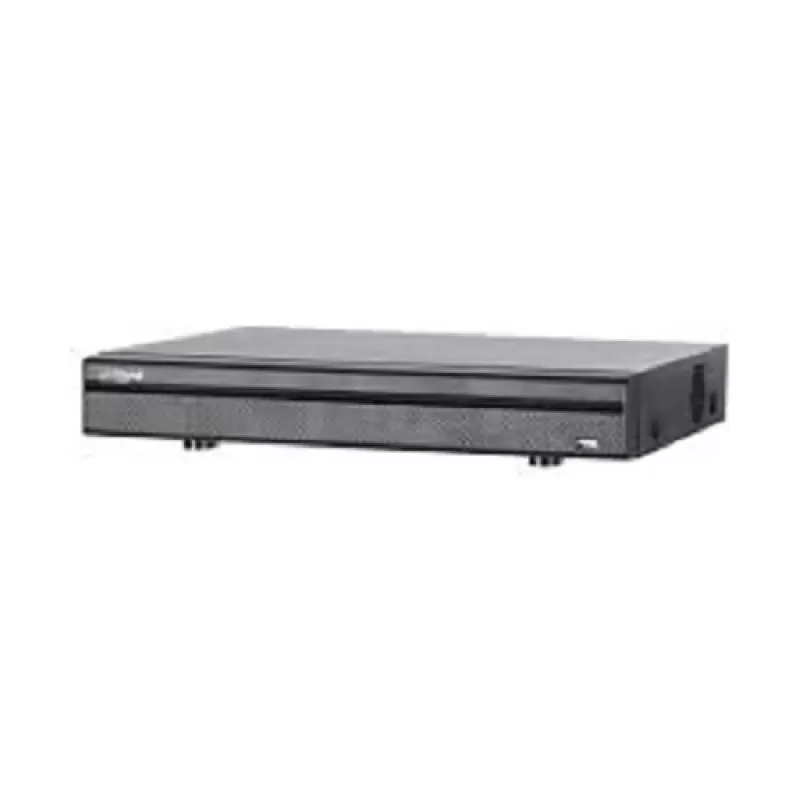

DVR Dahua XVR5108H-4KL-X-8P, Pentabrid HDCVI/AHD/TVI/CVBS/IP, 8 ch. 4K, Mini 1U, H.265+, 12 ch. IP, 1xSATA, POC

DVR Dahua XVR5108H-4KL-X-8P, Pentabrid HDCVI/AHD/TVI/CVBS/IP, 8 ch. 4K, Mini 1U, H.265+, 12 ch. IP, 1xSATA, POC

(0 review-uri)
  • Producator: Dahua
  • Cod: XVR5108H-4KL-X-8P
  • Power over Coaxial (PoC): Da, CVI: Da
  • Rezolutie: Motion detection, D1, HDMI:3840x2160, Recording, CIF, 2560x1440, 4K, 1920x1080, 6MP, 1280x1024, 5MP, 1280x720, 4MP, VGA: 1920x1080, 3MP, OSD: Camera title, 4M-N, Time, 1080P, Video loss, 720P, Camera lock, 960H
  • Tehnologie: HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Disponibilitate: Indisponibil
La cerere
Adauga la favorite
Cere oferta montaj
DVR Dahua pentabrid XVR5108H-4KL-X-8P, 8 ch. 4K, Mini 1U, Supports HDCVI/AHD/TVI/CVBS/IP video inputs, H.265+/H.265 dual-stream video compression, Max 12 channels IP camera inputs, each channel up to 8MP
Max 48Mbps incoming bandwidth, Smart Search and Intelligent Video System, otal 48W output power consumption
Max supports 8 channels Lite series PoC cameras inputs or 4 channels Pro series PoC cameras inputs, 1xSATA up to 10TB capacity
Activare eveniment Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Alimentare DC53V
Audio bidirectional Reuse audio in/Out, RCA
Bit Rate 32Kbps ~ 8192Kbps Per Channel
Capacitate maxima HDD 10 TB
CE-EMC EN 55024, UL: UL 60950-1, EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130
Compresie audio G.711U, PCM, AAC(only for the 1st channel), G.711A
Compresie video H.265+/H.265/H.264+/H.264
Consum <15W (fara HDD)
CVBS Da, VGA: 1
Detectie video Motion Detection
Dimensiuni 325x255x55 mm
Dispozitive suportate iPhone, iPad, Android
Flux principal 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), 4M-N/1080P/720P/960H/D1/CIF(1~25/30fps)
Flux secundar 960H(1~15fps), D1/CIF(1~25/30fps)
Format Mini 1U
Greutate 1.35 kg
HDMI 1, USB: 2 (1 USB 2.0, 1 USB 3.0)
Iesiri audio 1
Interfata 1 RJ-45 Port (1000M)
Interval inregistrare 1 ~ 60 min (default: 60 min)
Intrari audio 1
Intrari BNC 8
MD (Video detection Motion Detection, Video Loss, Tampering), Alarm, Stop
MD Zones 396 (22x18), Video Loss, Tampering and Diagnosis
Modalitati Backup USB Device/Network
Modalitati cautare Time /Date, Alarm, MD and Exact Search (accurate to second)
Moduri inregistrare Manual, Schedule (Regular, Continuous)
Numar total canale 8 BNC, 12 IP (8+4, fiecare canal pana la 8MP)
ONVIF 16.12, CGI Conformant, AHD: Da
Playback simultan 1/4/9
Post-record 10 ~ 300 sec
Power over Coaxial (PoC) Da, CVI: Da
Pre-record 1 ~ 30 sec
Procesor Embedded
Protocol retea NTP, HTTPS, DHCP, TCP/IP, DNS, IPv4/IPv6, IP Filter;, Wi-Fi, PPPoE;DDNS, 3G/4G, FTP, SNMP, Alarm Server, UPNP, P2P;IP Search (Supports IP camera, RTSP, DVR, UDP, NVS, SMTP, etc.), HTTP
Rezolutie Motion detection, D1, HDMI:3840x2160, Recording, CIF, 2560x1440, 4K, 1920x1080, 6MP, 1280x1024, 5MP, 1280x720, 4MP, VGA: 1920x1080, 3MP, OSD: Camera title, 4M-N, Time, 1080P, Video loss, 720P, Camera lock, 960H
Rezolutie maxima AHD 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
Rezolutie maxima CVI 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
Rezolutie maxima IP each channel up to 8MP, 8+4 Channel
Rezolutie maxima TVI 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
RJ45 1
RS485 1 Port, for PTZ Control
SATA 1
Sistem operare Embedded LINUX
Stocare HDD 1x SATA
Tehnologie HDCVI/AHD/TVI/CVBS/IP, TVI: Da, IP: Da
Temperatura functionare -10 ~ +55 C, 10% ~ 90% RH
Utilizatori 128 max.
